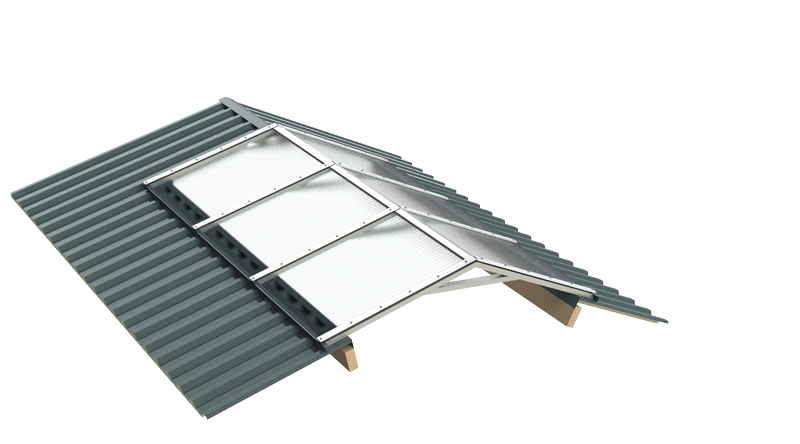

Gable ridge

The gable roof with side ventilation is a skylight that keeps snow and rainwater out while letting in plenty of natural daylight. The chimney effect caused by the wind guides ensures excellent extraction of warm and dirty air. The height of the wind guide plays a big role here. Each skylight is fully custom made by Bunt Skylights to achieve the highest efficiency of air extraction. The gable roof with side ventilation has an aluminium structure that supports the natural light panels. The natural light panels are made of multi-walled polycarbonate with a UV protective coating which prevents discoloration and makes them last for years.

  • Also available without side ventilation
  • Ventilation hatch (optional) 1250 x 1250 mm
  • Electric or manual
  • Keeps out rain and snow
  • Aesthetically pleasing
  • Combination of polycarbonate sheets possible

Characteristics

Gable ridge

Natural light panelMulti-walled polycarbonate natural light panel
Natural light panel          10 mm clear/translucent-white or athermic
Wind guideAluminium on Plastisol gray incl. brush seals
Aluminium profiles (construction)Untreated aluminium
Spacing1250 mm for rough opening of up to 2500 mm
1050 mm for rough opening of more than 2500 mm
700 mm for rough opening of more than 4000 mm
NEN StandardsNEN 6065
Fire classB1
ProtectionUV-resistant, highly impact resistant
